Description
1 LCD :Displayed the information
2 Magnetic box :Two metal buttons with magnetic, output channel,
3 Up key: Increase the intensity
4 Down key : Decrease the intensity, unlock function
5 Standby key:Power on, power off and stop therapy
6 P key: Switch the therapy program, pause and re-again
7 Battery cover:Fix and protect the battery
8 Holder:Place and fix the host
9 Electrode belt :Locate and transfer output signal and energy from the host
10 Conductive silicone rubberof belt: Conduct the output signal and energy of stimulator to body

Technical information:

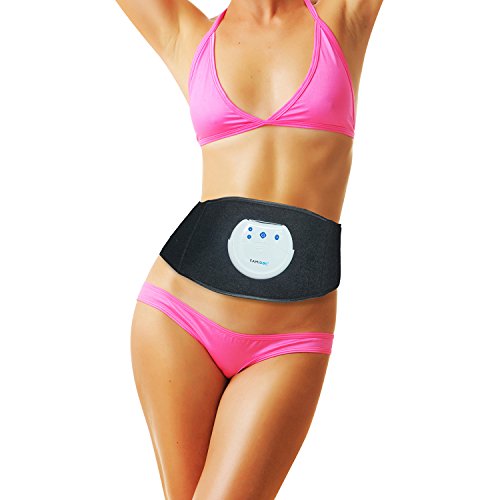

Device name :Abdomen Fitness Belt
Power supply :4.5V D.C, 3x AAA batteries
Output Channel:Single channel
Wave sharp:Bi-phase square-wave pulse
Output voltage:Max. 45Vpp (at 500ohm load)
Output current:Max. 90mA (at 500ohm load)
Treatment time:20-30min
Output intensity:0 to 20 levels, adjustable
Number of program:10 EMS programs
Operating conditions:5°C to 40°C with a relative humidity of 30%-85%, atmospheric pressure
from 700 hpa to 1060 hPa Storage conditions -10°C to 50°C with a relative humidity
of 10%-90%, atmospheric pressure from 700 hPa to 1060 hPa
Dormancy current: Less than 60uA (At power off mode)
Working current :Less than 80mA (At the P01 program)
Dimensions :91x81x19 mm
Automatic shutoff 3 minutes
Output precision :All the output parameters allow ±20% error for the specification.
Technical specification for programs
P.W. (pulse width):250us
P.R. (Frequency):3-80Hz
Contraction (on) time:4-20sec.
Relaxation (off) time: 0-12sec.
Ramp up and ramp down time: 2-10sec.
Output characteristics :Constant Voltage (CV)
Treatment phase: 3-4 phases

Package included:
1 x EMS Abdominal Stimulator
1 x Electrode Belt
3 x AAA Batteries
1 x User Manual

Product Features

• ✅ ELECTROTHERAPY: 10 different EMS therapeutic massage modes with 20 level of adjustable intensity and frequency will help to lose weight
• ✅ CONVENIENT: The default treatment time for different massage program is also varied, usually from 20 to 30 minutes; 180-second automatic shutoff will help to save power.
• ✅ DIMENSIONS: 91x81x19 mm
• ✅ MATERIAL: Sweat-Proof and Dust-Proof
• ✅ NOTICE: The skin of belly must be moist when use with the belt, otherwise your skin will feel stinging, Please wipe your belly with wet towel each time before you open the machine
